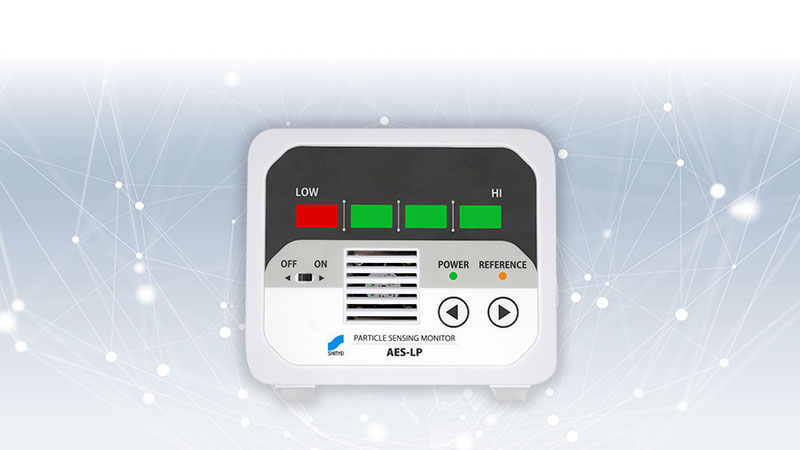

Particle Sensing MonitorAES-LPM Series (For Large Particles)
Recommended for
contamination control.

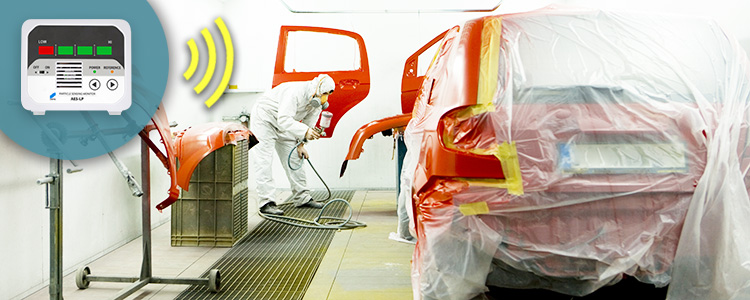

It can constantly monitor particles in painting process and various manufacturing processes
where large particles of 5 to 50μm are disliked.
Useful for quality improvement and defect rate reduction at low cost.
Small size and low cost.
Can be deployed at maltiple locations because of its compact design and low cost.
4-level LED display for the number of large particles that fall without floating.
Simple operability and LED display offers visualizing cleanliness level easily.
Detect particles of 5μm to 50μm* (*reference value).
Useful for quality improvement and defect rate reduction by detecting particles of 5 to 50μm.
5 different outputs or communication interfaces.
Output/communication way can be selected from alarm output, Ethernet, voltage output, Wi-Fi and RS485.
Continuous monitoring and quick notification of abnormalities.
Continuous monitoring enabels to notify abnormal event occurrence or process problem almost in real time.
Temperature and humidity sensor avaliable as an option.
By connecting Temperature and Humidity sensor RHU-LB151-11A-AES (optional), the monitor can measure temperature and humidity continuously.
-
Temperature and humidity sensor
-
By connecting Temperature and Humidity sensor RHU-LB151-11A-AES (optional), the monitor can measure temperature and humidity constantly.
Monitoring Software
-

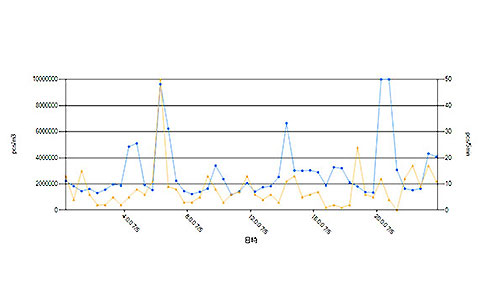

Dedicated PC application software allows the user to import data, change settings, display graphs and use other functions.
*Only for Ethernet/Wi-Fi communication models.
Calibration service
-

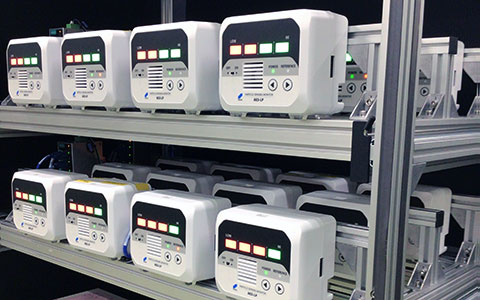

Calibration service for particle, temperature and relative humidity measurement are available. Certificate and related documents can be issued.
* scroll to the side
| Model | AES-LPM |
|---|---|
| Optical Source | Laser Diode |
| Detectable Particle Size | 5μm／10μm／20μm／30μm／50μm（*1） |
| Measurement Range | Class10,000 to Class100,000 |
| Unit | pcs/5 min (Default Condition), pcs/m3, pcs/cf, pcs/L |
| Output/Interface | Alarm, Ethernet, Analog(1-5V), Wi-Fi, RS485 |
| Measurement Time | 300s |
| Data Update Time | 1s |
| Power | ＋24V |
| Power Consumption (max) | ＋600mA |
| Operating Temperature | 0℃ to ＋40℃ |
| Storage Temperature | -20℃ to ＋60℃ |
| Operating Humidity | 30%rh to 80%rh |
| Storage Humidity | Below 90%rh (No condensation) |
| Weight | Approx. 370g |
| Applicable Wire Size | AWG26 to 20 |
- （*1）10μm／20μm／30μm／50μm are reference information.
