Particle Sensing Monitor AES-CKM series
(High-end model for Fine Particle Monitoring)

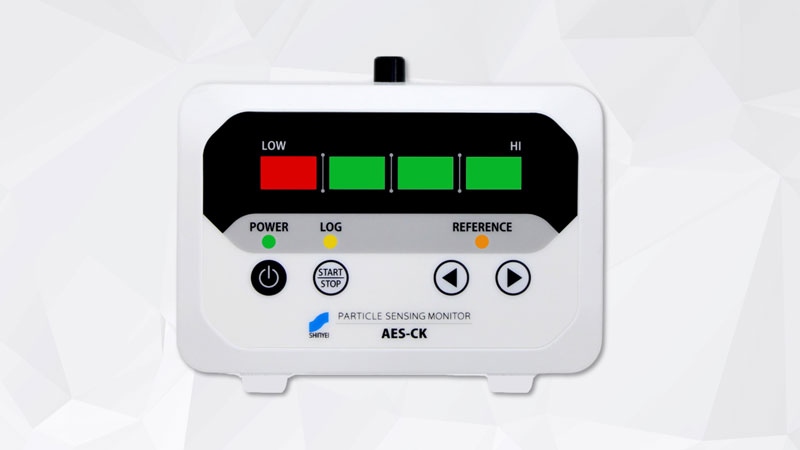

![CHU-L151-11A-AES](../images/products/ckm/main_ckm01.jpg)
For more accurate measurements
AES-CKM enables more accurate measurements in a clean environment with ISO Class 6 (Class 1,000).
It can detect both fine particles(over 0.5µm) and large particles(over 5µm) simultaneously.
This device can be used temporarily in a location without power supply, by connecting to the portable charger.
![For Fine Particles](../images/products/fp/main_fp02.jpg)
Enable continuous measurements in a clean environment with ISO Class 6 (Class 1,000).
AES-CKM enables more accurate measurements in a clean environment with ISO Class 6 (Class 1,000).

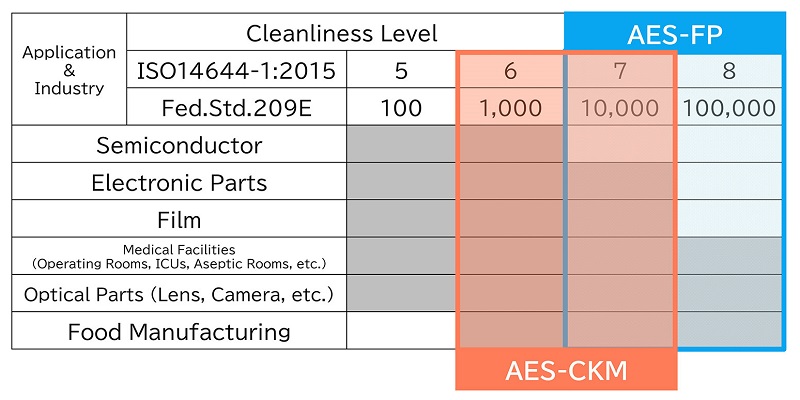

![chart](../images/products/ckm/aes_chart.jpg)
Detect fine particles(over 0.5µm) and large particles(over 5µm) simultaneously
AES-CKM can measure not only fine particles, which are crucial for cleanliness control, but also large particles that directly cause product quality defects. It simultaneously enables cleanliness monitoring and contamination control.
Easy-to-check 4 step LED display for cleanliness level
Simple operability and the display offers visualizing cleanliness level easily.
Logging function is embedded
Capable of storing data for 3.5 days (84 hours, log interval: 1 minute). By connecting to portable charger(lasts for 12 hours at 5V/10,000mA), AES-CKM can be used temporarily in a location without power supply.
Continuous monitoring and quick notification of abnormalities
Continuous monitoring enables to notify abnormal event occurrence or process problem almost in real time.
Temperature and humidity sensor available as an option
By connecting Temperature and Humidity sensor (optional), the monitor can measure temperature and humidity constantly.

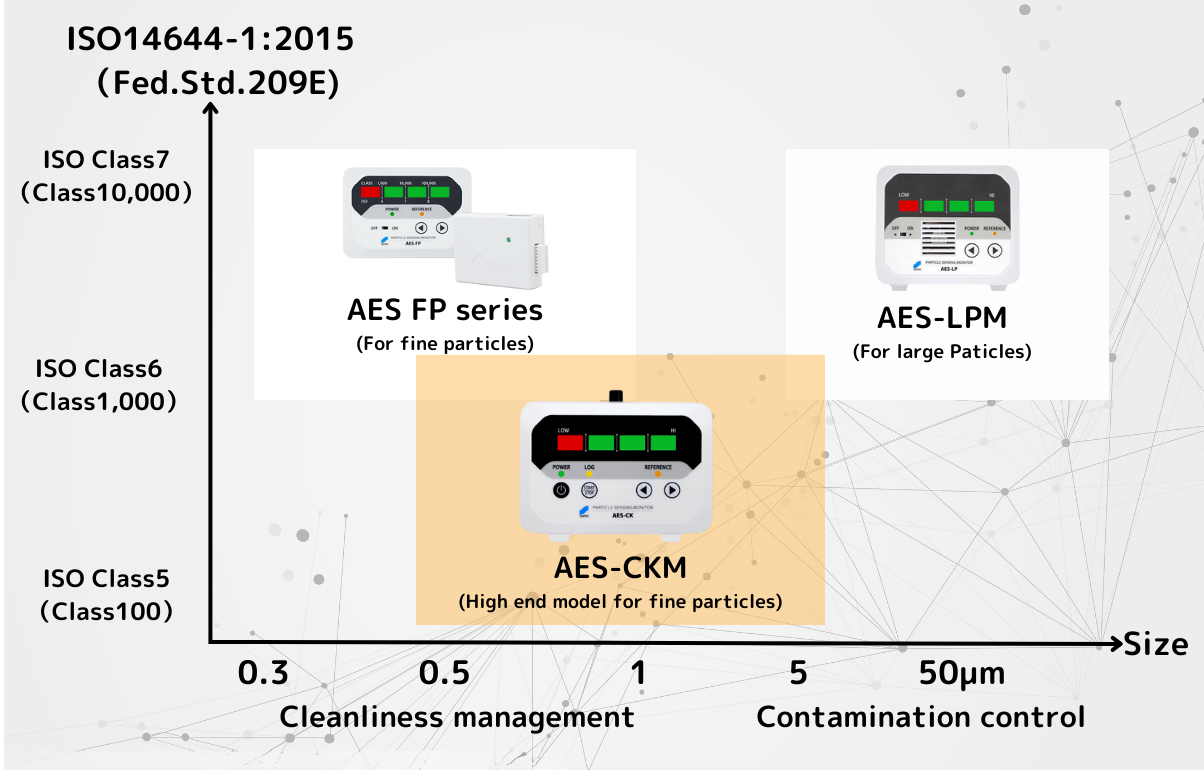

![APPLICATION & INDUSTRIES](../images/products/ckm/particle-lineup.png)
-
Temperature and humidity sensor
-
By connecting Temperature and Humidity sensor RHU-LB151-11A-AES (optional), the monitor can measure temperature and humidity constantly.
Monitoring Software
-
Dedicated PC application software allows the user to import data, change settings, display graphs and use other functions.
*Only for Ethernet/Wi-Fi communication models.
Calibration service
-
Calibration service for particle, temperature and relative humidity measurement are available. Certificate and related documents can be issued.
* scroll to the side
Model | AES-CKM | |||||
---|---|---|---|---|---|---|
Optical Source | Laser Diode | |||||
Detectable Particle Size *1 | Over 0.5µm/ Over 5µm | |||||
Measurement Range | ISO14644-1:2015 Class6-7(Fed.Std.209E Class 1,000-10,000) | |||||
Unit | pcs/m3(Default), pcs/cf, pcs/L | |||||
Output/Interface | Alarm, Ethernet, Analog(1-5V), Wi-Fi, RS485 | |||||
Measurement Time | 60s | |||||
Data Update Time | 1s | |||||
Memory capacity | 128kB(Equivalent to 3.5 days) | |||||
Power | +24V(Power terminal block)/+300mA(Max) +5V(Power supply Type-C conector)/+1A(Max) |
|||||
Power Consumption (max) | 1.5A(7.5W MAX) | |||||
Operating Temperature | 0 to 40℃ | |||||
Storage Temperature | -20 to 60℃ | |||||
Operating Humidity | 30 to 80%rh | |||||
Storage Humidity | Below 90%rh (No condensation) | |||||
Weight | Approx. 510g | |||||
Applicable Wire Size | AWG26 to 20 |
- (*1)Calibration point is only at 0.5µm range
