Particle Sensing Monitor AES-FP series
(For Fine Particles)
The best device for
cleanliness monitoring

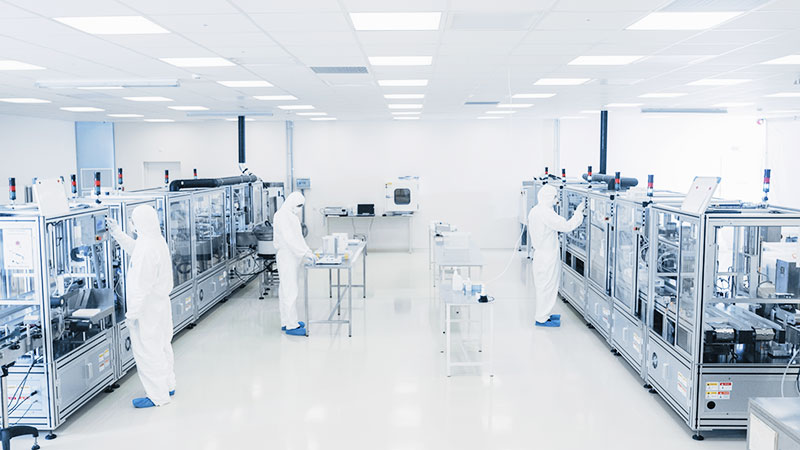

AES-FP series can detect particles over 0.3μm (or 0.5μm) in cleanroom, semiconductor/food manufacturing process, printing process, hospital facilities, and other environment requiring cleanliness monitoring at Class1,000 to 100,000.
It supports cleanliness monitoring and is useful for HACCP management. Sensor unit has a compact design suitable for integration into manufacturing equipment.
Capable to detect suspended particles at low cost.

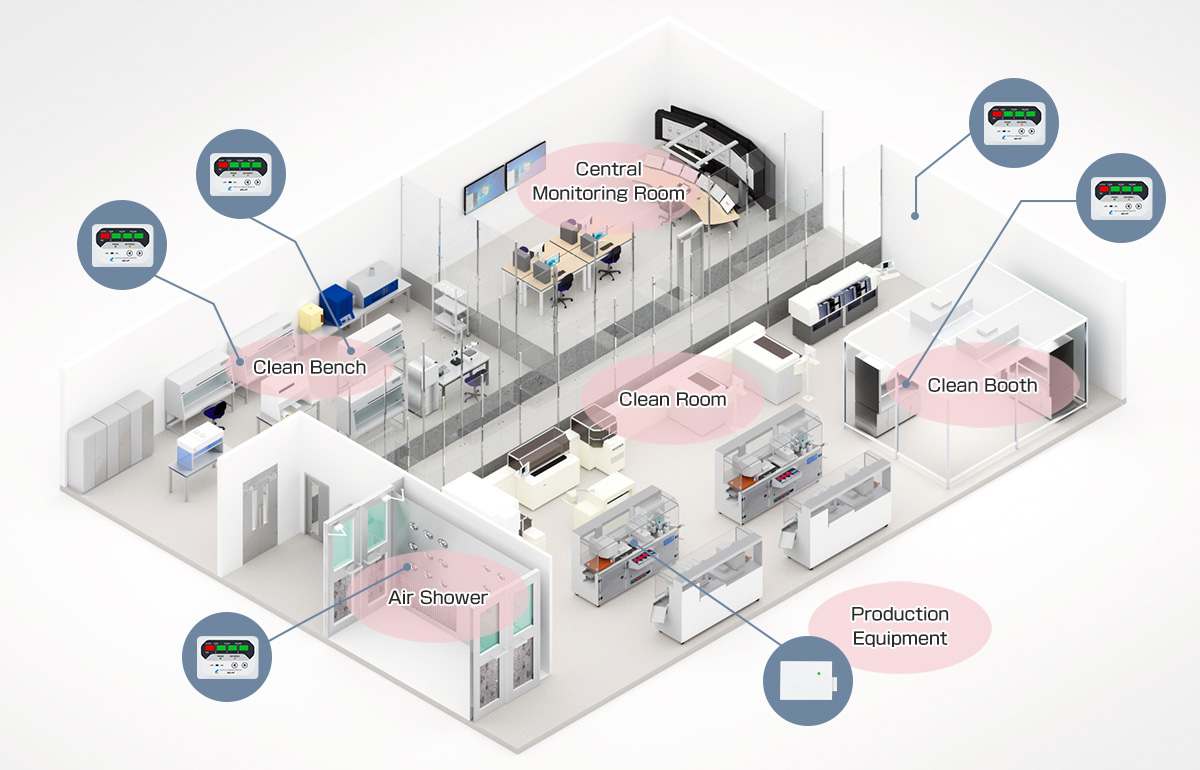

If you need a monitoring function, use Particle Sensing Monitor. When incorporating into a production equipment and measuring at multiple locations, use Particle Sensor Unit independently.

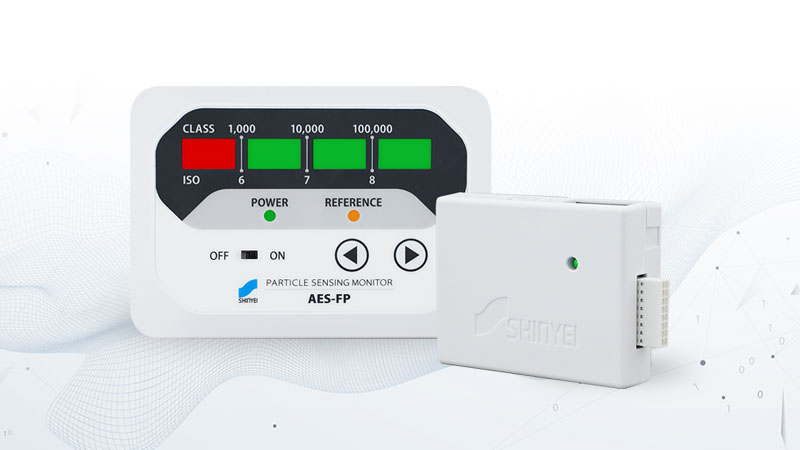

Easy-to-check 4 step LED display for cleanliness level Class 1,000 to 100,000.
Simple operability and the display offers visualizing cleanliness level easily.
Detect particles over 0.3μm (or 0.5μm) and over a few μm* (*reference value).
By detecting not only over 0.3μm (or 0.5μm) but a few μm(as reference) that is required for clean environment management, it helps to suppress the occurrence of quality defects due to particle adhesion in the manufacturing process of precision parts and work environment.
5 models available for suitable application and communication interface.
For Particle Sensing Monitor, 4 types of output/communication can be selected from alarm output, Ethernet, voltage output, and Wi-Fi. For Particle Sensor Unit, it can communicate with RS485.
Detachable sensor unit to maintain continuous measurement during calibration.
By using a spare sensor unit, continuous measurement can be done during the calibration. Sensor unit can be used independently.
Temperature and humidity sensor available as an option.
By connecting Temperature and Humidity sensor RHU-LB151-11A-AES (optional), the monitor can measure temperature and humidity constantly.
-
Temperature and humidity sensor
-
By connecting Temperature and Humidity sensor RHU-LB151-11A-AES (optional), the monitor can measure temperature and humidity constantly.
Monitoring Software
-
Dedicated PC application software allows the user to import data, change settings, display graphs and use other functions.
*Only for Ethernet/Wi-Fi communication models.
Calibration service
-
Calibration service for particle, temperature and relative humidity measurement are available. Certificate and related documents can be issued.
* scroll to the side
| Particle Sensing Monitor | Particle Sensor Unit | |||||
|---|---|---|---|---|---|---|
| Model #(0.3μm)：AES-□□□: Model #(0.5μm)：AES-□□□-5□: |
FPM-1 FPM-51 |
FPM-2 FPM-52 |
FPM-3 FPM-53 |
FPM-4 FPM-54 |
FPS FPS-5 |
|
| Optical Source | Laser Diode | |||||
| Measurement Range | Class1,000 to Class100,000(*1) | |||||
| Unit | pcs/m3(Default), pcs/cf, pcs/L(*2) | |||||
| Data Update Time | 1s | |||||
| Power | 12 to 24V(*3) | |||||
| Power Consumption (max) | +600mA | +200mA | ||||
| Operating Temperature | 0 to 40℃ | |||||
| Storage Temperature | -20 to 60℃ | |||||
| Operating Humidity | 30 to 80%rh | |||||
| Storage Humidity | Below 90%rh (No condensation) | |||||
| Output | LED Level Display | 〇 | 〇 | 〇 | 〇 | - |
| Reference LED | 〇 | 〇 | 〇 | 〇 | - | |
| Analog Voltage(1-5V) | - | - | 〇 | - | - | |
| Digital (Interface) | - | 〇 （Ethernet） |
- | 〇 （Ethernet） （Wi-Fi） |
〇 （RS485） |
|
| Alarm Output | 〇 | 〇 | 〇 | 〇 | - | |
| Temperature and Humidity Measurement(*4) |
- | 〇 | - | 〇 | - | |
| Weight | Approx. 210g | Approx. 65g | ||||
| Applicable Wire Size | AWG26 to 20 | |||||
- （*1）Class1,000 is reference information.
- （*2）Unit can be changed only for FPM-2/52/4/54. Unit for over a few μm is [pcs/min] as fixed.
- （*3）The dedicated AC adapter is supplied separately as an option.
- （*4）Temperature and humidity sensor (Model#: RHU-LB151-11A-AES) is required as an option.
* scroll to the side
| Particle Sensing Monitor | Particle Sensor Unit | ||||
|---|---|---|---|---|---|
| Model #(0.3μm)：AES-□□□ | FPM-1 | FPM-2 | FPM-3 | FPM-4 | FPS |
| Detectable Particle Size | Over 0.3μm / Over a few μm(Reference) | ||||
| Output Average Time | 60s | ||||
* scroll to the side
| Particle Sensing Monitor | Particle Sensor Unit | ||||
|---|---|---|---|---|---|
| Model #(0.5μm)：AES-□□□-5□ | FPM-51 | FPM-52 | FPM-53 | FPM-54 | FPS-5 |
| Detectable Particle Size | Over 0.5μm / Over a few μm(Reference) | ||||
| Output Average Time | 300s | ||||
